Lost Every Key to a Mercedes Sprinter in Windsor? How an On-Site All-Keys-Lost Replacement Works on the EIS

The story behind the call

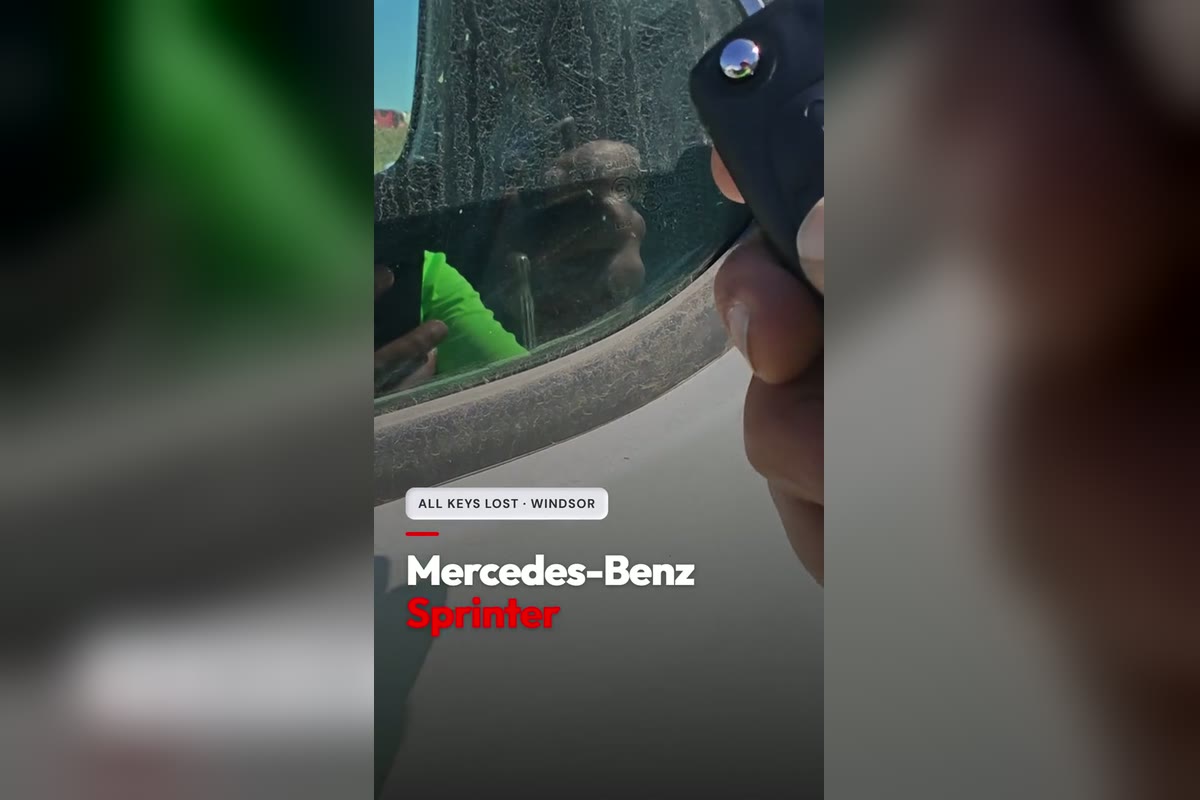

A white Mercedes-Benz Sprinter was parked near the Metro on Howard Avenue, in the Devonshire end of Windsor, when the owner realised there was no key left to find. The only key had gone missing somewhere between the last stop and the next one, and there was no spare in a drawer at home. For a work van that is a real problem: the tools are inside, the day's jobs are booked, and the dealer answer was a tow to the service department followed by a wait for a key to be ordered.

Instead of a tow, the van got a visit. The technician decoded the door lock, cut a new HU64 blade, read the Electronic Ignition Switch, wrote a new key to it, and started the van right where it was parked. The whole all-keys-lost job was done at the curb by a mobile locksmith, and the Sprinter drove away on a key that did not exist that morning. Canadian Locksmiths is the only locksmith in Windsor offering on-site all-keys-lost service for the Sprinter, and this is what that job looks like from start to finish.

From the TikTok job video

The job was filmed and posted to the Canadian Locksmiths TikTok. Watch the full Sprinter all-keys-lost video on TikTok, 25 seconds from the new key at the door to the dash lighting up. The caption on the post reads:

"The badge on a Sprinter's grille is the least useful thing about it. This van was sold here under three names, Mercedes-Benz, Dodge and Freightliner, and the key system underneath never changed. Same HU64 blade, same Electronic Ignition Switch, same tooling. A Dodge Sprinter and a Mercedes Sprinter are one job wearing two badges."

via the Canadian Locksmiths TikTok, filmed near Metro on Howard, Windsor

Vehicle and module specifics

The van in this post is the second-generation Sprinter, known inside Mercedes-Benz as the NCV3 and built on the W906 platform. In Canada it ran from the 2007 model year through 2018, sold under the Dodge badge early on, under Freightliner for commercial fleets, and under the Mercedes-Benz badge from the 2010 model year onward. Every version uses the same key system.

The distinction that matters most is generational. The NCV3 Sprinter sits on FBS3, which is still serviceable by a properly equipped independent locksmith. The third-generation VS30 Sprinter that replaced it for 2019 moved to FBS4, and FBS4 keys are dealer-only. Canadian Locksmiths does not offer key work on the 2019 and newer VS30 Sprinter, and says so before anyone is dispatched. For a 2007 to 2018 van, the full job is done on-site.

Tools used on this job

The Sprinter is not an OBD-and-go van. With every key gone, there is nothing for a generic key programmer to copy and no working key to add alongside. The job has to go through the Electronic Ignition Switch itself: the EIS holds the secret data that every valid key must match, and a new key is written into one of its free positions. The MBE KR55 KeyMaker is the tool Canadian Locksmiths carries for that work on older infrared Mercedes keys and the Sprinter specifically, backed by VVDI MB BGA and the Lonsdor K518 Pro for the wider FBS3 range.

A budget programmer that handles domestic transponder cars will usually identify the van and then stall at the EIS, because the Sprinter does not accept a key the way a Ford or GM transponder system does. The difference between a shop that can finish this job and one that cannot is the Mercedes-specific EIS tooling, not the blade.

What gets done on the appointment

The high-level sequence the technician follows for a Sprinter with no working key:

1. Confirm the van. Read the VIN at the dash and the door jamb, confirm the model year falls inside the NCV3 2007 to 2018 window, and confirm it is FBS3, not a VS30 on FBS4.
2. Decode the door. With no key to copy, the driver door cylinder is decoded on the Lishi BENZ HU64 to recover the cut depths for the HU64 two-track blade.
3. Cut the blade. An X241 blank is cut to the decoded code on the Triton PLUS, then test-turned in the door before any programming starts.
4. Read the EIS and write a key. With battery support clamped on, the Electronic Ignition Switch data is read with the MBE KR55 KeyMaker and a new key is written into a free key position.

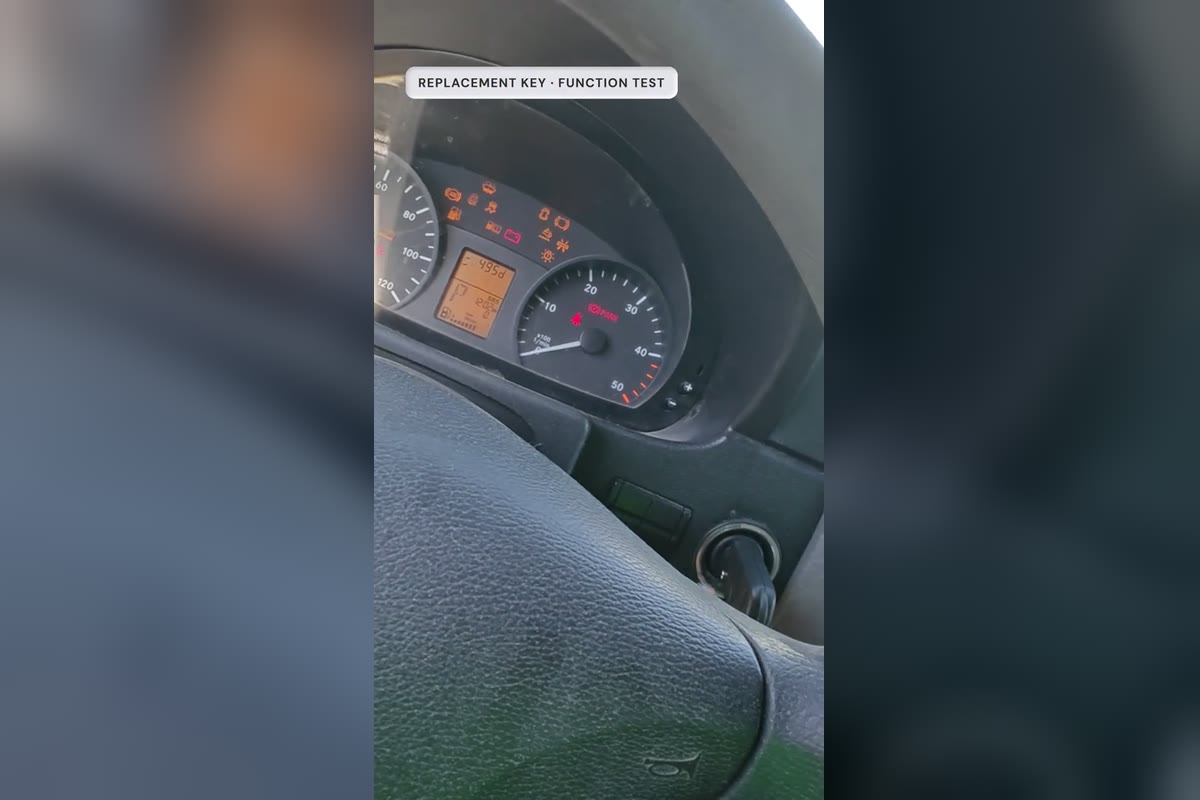

5. Verify everything. The new key goes into the ignition, the dash lights up, and the van cranks and runs. Central locking, the side sliding door, and the rear doors are confirmed from outside the van.
6. Plan the spare. With one working key back in hand, the owner is offered a spare key written at the same visit. Sprinter spare keys start from $399, less than another all-keys-lost call and a tow later.

Troubleshooting common Sprinter key issues

These are the Sprinter calls Canadian Locksmiths sees from owners who tried another route first.

• The new key turns but the dash stays dark. The blade was cut right, but the key was never written to the EIS, or it was written to a different van. The Sprinter will not wake up for a key it does not recognise. Writing the key to this van's EIS clears it.
• An online Sprinter key cut fine but the shop could not program it. Many listings look identical but carry a pre-used or incompatible board. A key already written to another Sprinter is locked to that EIS and generally cannot be written to a second van. Sourcing a fresh OEM-equivalent key avoids a wasted visit.
• The key starts the van but the remote buttons do nothing. On this system the remote functions and the start authorization live in the same key head, and a weak or wrong coin cell is the most common cause. The key uses a CR2025. A fresh cell, and a check that the key was written fully, fixes most of these.
• The key sticks or will not turn in the ignition. Either the blade was traced from a worn original, or the EIS itself is wearing. A blade decoded from the door and cut to code solves the first. The second calls for an EIS inspection, because a failing ignition switch can leave even a correct key unable to turn.

Insider notes most owners never hear

The Sprinter is one of the most misunderstood vans on the road when it comes to keys. These are the realities from inside the job.

1. Three badges, one key system

Between 2007 and 2018 the same NCV3 van was sold as a Dodge Sprinter, a Freightliner Sprinter, and a Mercedes-Benz Sprinter. Owners of the Dodge version are often told to go to a Chrysler dealer, who then sends them to Mercedes. Underneath the grille it is the same HU64 blade, the same Electronic Ignition Switch, and the same FBS3 immobilizer. A Dodge Sprinter all-keys-lost job and a Mercedes Sprinter all-keys-lost job use the same tools and the same process, and Canadian Locksmiths handles both.

2. The EIS is where the job lives

On most domestic trucks the immobilizer data sits in a body or engine module and a new key is paired over the diagnostic port. On the Sprinter, the Electronic Ignition Switch is the gatekeeper. It holds the secret data every valid key must match, and it decides whether the van wakes up. That is why an all-keys-lost Sprinter is an EIS job first and a key job second, and why a generic key programmer with no Mercedes EIS capability cannot finish it.

3. Eight key positions, and they do not reset

The Sprinter EIS has eight key tracks. Every key ever written to the van uses one. Positions are not cleared when a key is lost; the lost key's track can be disabled so it no longer starts the van, but the slot is still used. A van that has been through several owners and several lost keys can run short of free positions, and knowing how many remain is part of reading the EIS before writing anything.

4. A written key is married to one van

Once a Sprinter key has been written to an EIS, it is locked to that van. A used key from a salvage yard or an online listing that has already been written to another Sprinter generally cannot be written to a second one. This is the most common reason a customer arrives with a key they already paid for that will never work. A fresh OEM-equivalent key is the reliable answer.

5. FBS3 is serviceable; FBS4 is not

The line that matters for Sprinter owners is the model year. The 2007 to 2018 NCV3 runs FBS3, which a properly equipped independent can service on-site. The VS30 Sprinter that arrived for 2019 runs FBS4, and FBS4 key creation remains dealer-only. Canadian Locksmiths tells a VS30 owner that up front rather than sending a technician to a job that cannot be finished.

6. NASTF VSP credentials and why they matter

Mercedes-Benz, like every manufacturer, gates certain immobilizer and security data behind an authorized access channel. In North America that channel is NASTF, and the credential is the Vehicle Security Professional (VSP) registration, which vets locksmiths before they can request security information. Canadian Locksmiths holds active NASTF VSP credentials. A shop without that registration is limited to whatever an aftermarket tool can do on its own, which is where half-finished jobs on European vans tend to come from.

7. The infrared head is not just a remote

The chrome-sided Sprinter key has an infrared window in the head. When the key is in the ignition, the EIS talks to the key through that window as part of starting the van, and the same head carries the lock and unlock buttons. A key with a cracked head, a failing board, or a weak cell can show up as intermittent starting as well as a remote that only works up close. The fix is often a new key rather than a new ignition switch.

8. Voltage discipline during the EIS write

Reading and writing the Electronic Ignition Switch keeps the van's electronics awake well past a normal key-off, and a work van with lights, inverters, and accessories can sit on a tired battery. If the 12V rail sags during a write, the session can abort partway and leave the key position half-written. Canadian Locksmiths clamps a battery support unit rated for at least 25 amps continuous, a CTEK PRO25S or a Schumacher INC-25A, to the van for the whole visit.

9. The door cylinder is the key code

With no key to copy and no key code on file, the door lock is the source of truth for the blade. The Lishi BENZ HU64 reads the two-track wafers in the driver door cylinder so the X241 blank can be cut to the van's actual code, not an approximation. A blade cut from the door turns every lock on the van cleanly. A blade traced from a worn key, or guessed, is the one that sticks at the ignition six months later.

10. A work van needs two keys, not one

Most Sprinter all-keys-lost calls come from vans that only ever had one key in circulation, often because the second key stayed with a previous owner or a previous driver. With the EIS already open and the tools already connected, a spare key starts from $399. Leaving the job with two keys is the simplest insurance against making this call again, and it is the first thing the technician suggests after the van starts.

Cost and what to expect

A Mercedes-Benz Sprinter all-keys-lost job, with the door decoded, the blade cut, the key written to the EIS, and everything verified on-site in Windsor or anywhere across Essex County, starts at $499. Most jobs fall between $499 and $699+ once the EIS read, the blade work, and labour time are accounted for. A Sprinter spare key starts from $399, whether it is written at the same visit or added later with a working key in hand. A full quote is given before the technician dispatches.

For comparison, the dealer route on a van with no key usually starts with a tow, and towing a full-size Sprinter typically runs $200 to $400+ before it reaches the service bay. The dealer all-keys-lost bill then commonly lands in the $800 to $1,200+ range, plus the days the van is off the road waiting for a key to be ordered. Canadian Locksmiths holds active NASTF VSP credentials and does the work where the van is parked.

Book a Mercedes-Benz Sprinter all-keys-lost visit with Canadian Locksmiths or call (519) 979-1270 for a quote against the VIN before dispatch.

Frequently asked questions

Q: Can a Mercedes Sprinter key be replaced if every key is lost? A: Yes, on the 2007 to 2018 NCV3 Sprinter. Canadian Locksmiths decodes the door lock, cuts a new HU64 blade, reads the Electronic Ignition Switch, and writes a new key to it on-site with the MBE KR55 KeyMaker. The van starts on the new key before the technician leaves, with no tow needed.

Q: Is there a locksmith in Windsor that does Sprinter all-keys-lost on-site? A: Yes. Canadian Locksmiths is the only locksmith in Windsor offering on-site all-keys-lost service for the Mercedes-Benz Sprinter, covering the Dodge and Freightliner badged versions of the same van as well. The work is done where the van is parked, across Windsor and Essex County.

Q: Is a Dodge Sprinter key the same as a Mercedes Sprinter key? A: On the 2007 to 2018 NCV3 van, yes. The Dodge, Freightliner, and Mercedes-Benz Sprinter share the same HU64 blade, the same Electronic Ignition Switch, and the same FBS3 immobilizer. The job and the tooling are identical, whichever badge is on the grille.

Q: Can Canadian Locksmiths make keys for a 2019 or newer Sprinter? A: No. The VS30 Sprinter introduced for 2019 uses the FBS4 immobilizer, and FBS4 key creation is dealer-only. Canadian Locksmiths services the 2007 to 2018 NCV3 Sprinter on FBS3 and will say so before dispatch if the van is a VS30.

Q: Can I buy a used Sprinter key online and have it programmed? A: Usually not. Once a Sprinter key has been written to an EIS it is locked to that van, and a used key from another Sprinter generally cannot be written to a second one. A fresh OEM-equivalent key is the reliable route, and Canadian Locksmiths supplies it at the visit.

Q: How much is a spare key for a Mercedes Sprinter? A: Sprinter spare keys start from $399 with Canadian Locksmiths. That covers an OEM-equivalent chrome-sided key, the HU64 blade cut to the van's code, and the key written to the EIS on-site. Adding the spare at the same visit as an all-keys-lost job avoids a second call-out.

Q: How long does a Sprinter all-keys-lost appointment take? A: Most visits run between one and two hours, depending on how cleanly the door decodes, how the EIS read goes, and whether a second key is written at the same time. The van is started and all locks are checked before the appointment is finished.

Q: Does Canadian Locksmiths ask for proof of ownership? A: Canadian Locksmiths may, at its sole discretion, request proof of vehicle ownership or identity before, during, or after performing services, and may decline service where ownership cannot be reasonably established. Questions are welcome any time on the FAQ page or by phone.

Q: Does Canadian Locksmiths service Sprinters outside Windsor? A: Yes. Mobile service covers Windsor, Tecumseh, LaSalle, Lakeshore, Amherstburg, Essex, Kingsville, Leamington, and the rest of Essex County, Ontario. More recent jobs are on the reviews page and the Canadian Locksmiths TikTok.
