Programming a Kia Sportage Smart Key in Windsor: Inside Smartra and the SMK Unit

The story behind the second key

A dark blue Kia Sportage sat in a workplace lot near the Devonshire Mall corridor on the south side of Windsor while a spare smart key was cut and programmed beside it. One working key in the household, nothing lost, no lockout. The owner just wanted a backup, and wanted it done at work rather than booked into a dealership and left for the day.

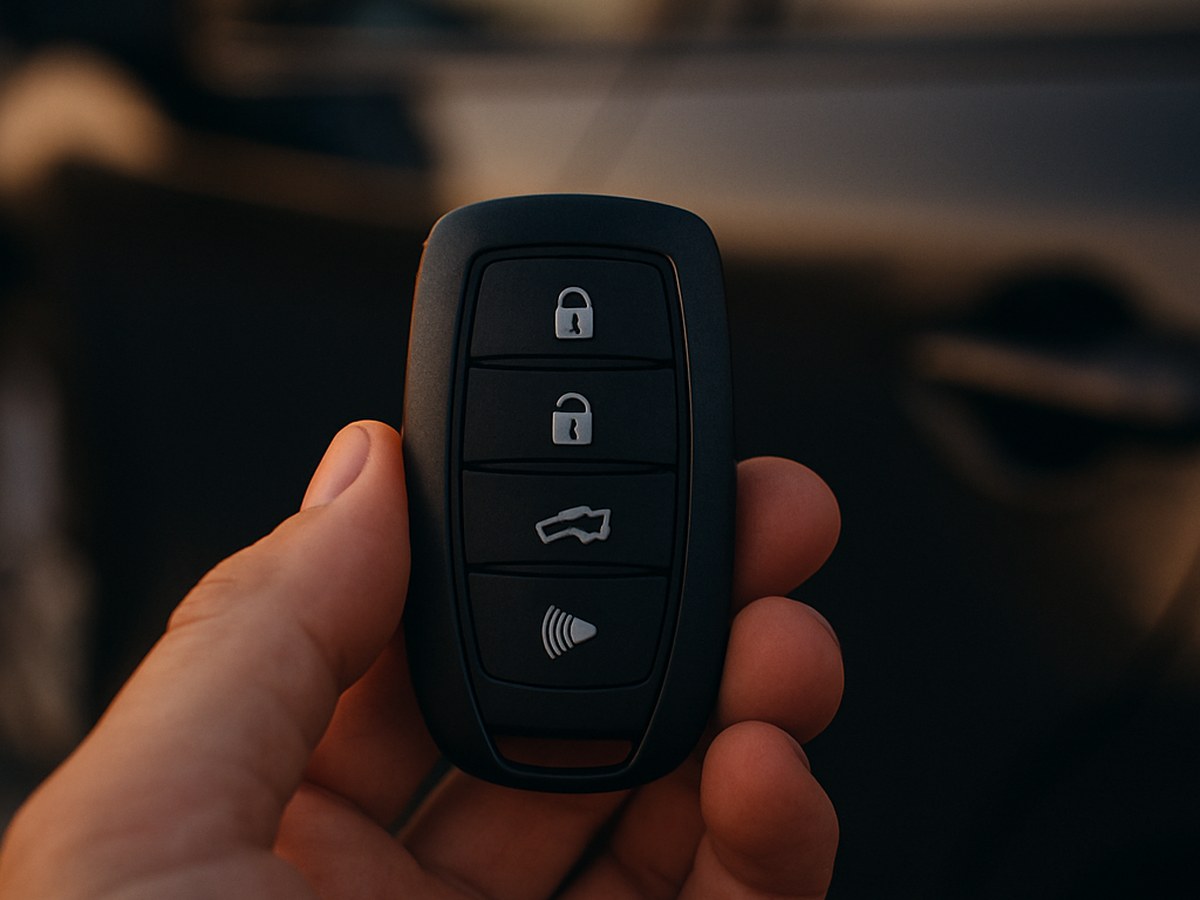

A single mobile visit to the parking spot, on-site programming, and the Sportage left with two fully working keys: the original plus an OEM-equivalent four-button smart proximity key, the mechanical insert blade cut to the door code, and the new key registered to the car's smart-key module and immobilizer through the proper security channel. The whole job finished where the car was parked, with no tow and no drop-off.

From the Google Business Profile update

The image below is the actual photo Canadian Locksmiths posted to its Google Business Profile after the appointment. The short customer note on the embedded card reads:

★★★★★

"Brought a fresh Sportage key to my car at work. No dealer trip, drives fine."

Shared by Riley B. on the Canadian Locksmiths Google Business Profile

Vehicle and module specifics

The car covered in this post is the fourth-generation Kia Sportage, the QL facelift that ran through the 2020 and 2021 model years on the smart-key trims described here. On those trims the fob is a four-button smart proximity key tied to the Kia smart-key system, and the anti-theft side runs on the Smartra immobilizer that Kia shares with Hyundai across this era.

The exact fob revision is confirmed against the VIN before anything is cut, because the smart-key trims and the older transponder trims of this generation do not share the same key, and a fob that is one revision off will sometimes pair for the remote buttons and then fail the immobilizer check.

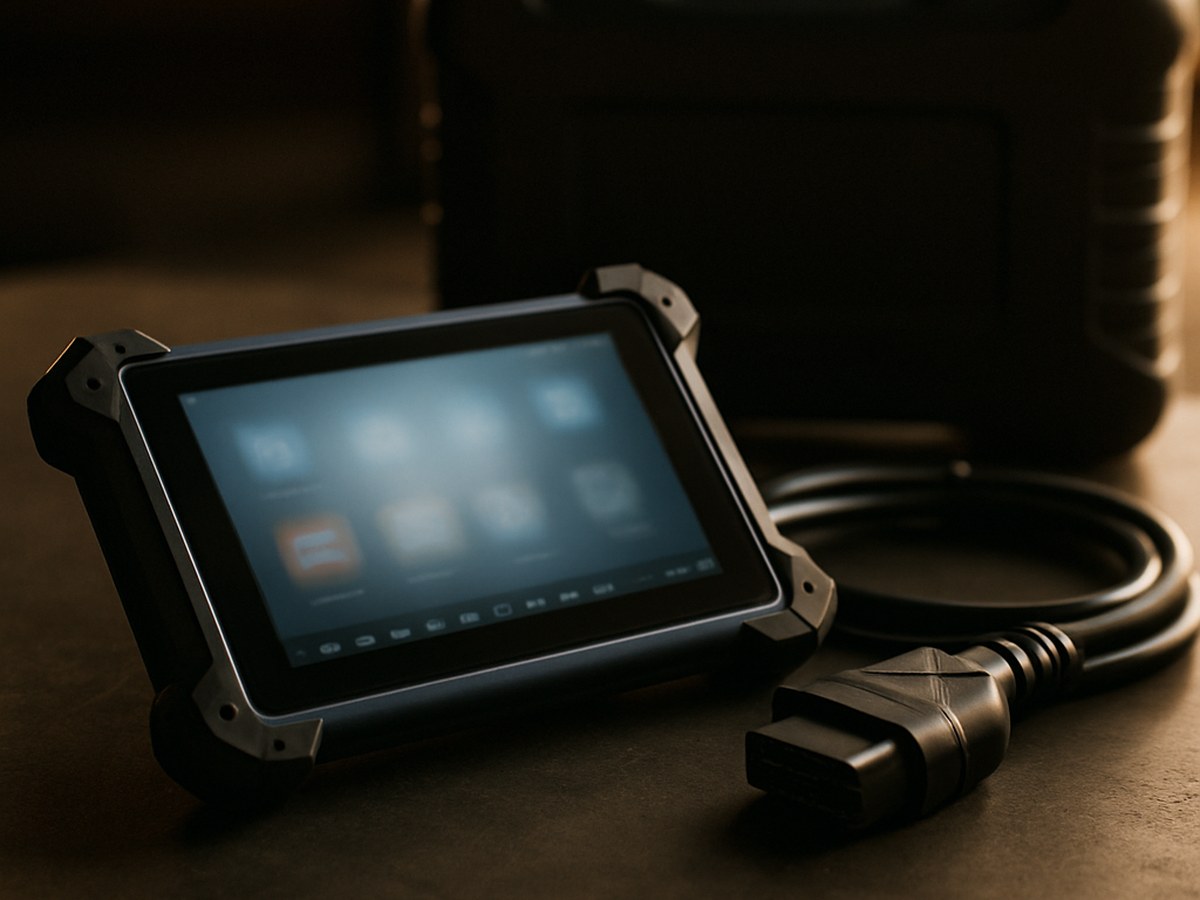

Tools used on this job

The part that separates a real Kia key job from a parking-lot promise is the security layer. The Smartra immobilizer does not let a tool drop a key in on demand. With one working key present, the SMK unit can register an additional smart key through a standard add over OBD-II. On the newer Kia security generation, all-keys-lost and certain registrations require a security PIN or a one-time code tied to the specific VIN, and that code is released through the manufacturer's authorized channel. On this spare-key visit the new key was registered with the Autel IM608 Pro, with any required security access pulled through the NASTF VSP channel rather than guessed or bypassed. For deeper module work and all-keys-lost recovery, Canadian Locksmiths runs the dealer-level Kia diagnostic software over a J2534 pass-through with NASTF VSP authorization, the same security gate the dealer uses.

What gets done on the appointment

The high-level sequence the technician follows for a Sportage spare smart key:

1. Confirm vehicle details. Read the VIN at the dash and the door jamb, note the model year and trim, and confirm one working key is present. Quote the spare rate against the verified fob revision.
2. Cut the mechanical insert blade. If the door code is on file, the blade is cut to code on the Triton PLUS. If not, the technician decodes the driver door cylinder on the Lishi KIA/HY HY20R first, then cuts the HY20R blank.
3. Connect and read the system. With the Autel IM608 Pro on the OBD-II port, the SMK unit and immobilizer are read and the key-registration routine is opened.
4. Authorize and register. Any required security PIN or one-time code is obtained through the NASTF VSP channel, and the new smart key is registered alongside the original.
5. Verify everything. The technician confirms push-button start, walks all four doors for passive entry, then range-tests remote lock, unlock, remote start, and panic.
6. Hand off. The original key stays fully functional. The new key is handed over with the cut insert seated in its mechanical backup slot.

Troubleshooting common Sportage key issues

These are the calls Canadian Locksmiths handles from Sportage owners who tried a budget option first.

• The new key unlocks the doors but the car will not start. The remote side was learned while the immobilizer side was never registered, usually because the shop could not complete the security access. Passive entry and the immobilizer are separate steps. Finishing the SMK registration completes the start side.
• A budget tool reported success, then the immobilizer light stayed on. Forcing the routine without proper access leaves the Smartra system unsatisfied. The steady immobilizer indicator at key-on is the car saying the key it sees is not one it trusts. Registering the key properly clears it.
• Remote start works from the original key but not the new one. Factory remote start on the Sportage is gated by a configuration setting and by the key being fully registered. A fob that is a revision off, or one registered without the remote-start parameter active, will start and lock the car but ignore the remote-start press.
• Passive entry works on one or two doors only. A proximity antenna is unplugged at the harness or was disabled in configuration after a door or module service. Reading the body and smart-key configuration exposes the conflict quickly.

Insider notes most owners never hear

The Kia and Hyundai smart-key world is one of the more misunderstood corners of consumer key work. The notes below are the technical reality from inside the job, not the marketing version.

1. Smartra is the immobilizer, the SMK is the proximity brain

Two systems share the work. The Smartra immobilizer, the Smart Transponder Antenna that Kia shares with Hyundai, decides whether the engine is allowed to run. The Smart Key Module, the SMK unit, handles the proximity side that detects the fob and lets the car start at the push of a button. A smart key has to satisfy both. A key that registers to one and not the other is the source of most half-working keys.

2. The security access is what NASTF VSP credentials unlock

Adding a key with a working key present is a standard registration, but the newer Kia security generation gates deeper work behind a security PIN or a one-time code tied to the VIN. The legitimate way to obtain it is the NASTF Vehicle Security Professional (VSP) channel, a North American registry that vets locksmiths and gives credentialed professionals manufacturer-authorized access to security data. Canadian Locksmiths holds active NASTF VSP credentials. A shop without that registration is left guessing or chasing grey-market workarounds.

3. The HY20R reverse keyway is not the standard Kia blade

Here is the detail that catches mail-order keys. The smart-key Sportage of this window uses the HY20R blade, a reverse keyway that inserts only one way, cut on the Lishi KIA/HY HY20R. It is not the same as the standard Hyundai and Kia laser keyway used on many other models of the era. Order the wrong blank and it will not enter the lock, even though it looks close.

4. The blade window shifts late in the generation

Adjacent Sportage builds, including certain 2022 cars, move to the HYN11 keyway rather than the HY20R, cut on the Lishi KIA/HY HYN11. The reverse-keyway HY20R blade described here is matched to the 2020 to 2021 smart-key build. Canadian Locksmiths confirms the year and the keyway against the VIN before any blank is cut, which is why the blade is matched to the specific car rather than to the model name.

5. Smart-key trim versus transponder trim is a different key

Not every Sportage of this generation has a smart key. The base trims used a turn-key transponder, and those cars take a different blade and a different registration. Buying a smart proximity fob for a transponder car, or the reverse, is a common and expensive mistake. The fob style is confirmed against the VIN and the ignition type, not assumed from the model year.

6. Why the budget online fob so often fails

The four-button smart fob listings online look identical, but they span board and firmware revisions, and not every listing matches the car. A fob that is a revision off will frequently pair for the remote buttons and then fail the immobilizer registration, leaving an owner with a key that locks the doors but will not start the engine. Confirming the fob revision against the VIN before anything is cut or paired is the single step that prevents that outcome.

7. All-keys-lost is a deeper job than a spare

With one working key present, the system already trusts a key and the new fob registers through a standard add. With zero working keys, the car has to be taken into a locked-state recovery that needs the security PIN or one-time code, stricter timing, and on many cars a deeper routine to seat a first key. That all-keys-lost path on a Smartra car runs through the dealer-level Kia software over J2534 with NASTF VSP authorization. It is best handled before the car is towed anywhere.

8. Voltage discipline during the write window

A key-registration session keeps the network awake far longer than a normal key-off, and the smart-key module is mid-conversation with the immobilizer. If the battery is marginal, the 12V rail can sag during the write and the registration can abort partway through. Canadian Locksmiths clamps a battery support unit rated for at least 25 amps continuous, a CTEK PRO25S or a Schumacher INC-25A, to the jump points for the full visit so the rail never drops during the write.

9. A used fob carries its old binding

A fob pulled from another Sportage still holds the binding to its previous car. Dropping it into a different vehicle without clearing that state throws a mismatch and the immobilizer rejects it. Some salvage fobs arrive pre-cleared, most do not. Sorting whether a used fob can be re-seated, and clearing the old binding when it can, is what separates a used fob that actually works from one a customer paid for and then blames on the locksmith.

10. The insert blade still matters on a push-button car

Push-button start makes owners forget the smart key has a blade at all, until the fob battery dies and they need to physically unlock the door. That backup only works if the HY20R insert was cut correctly. The blade is cut to the door code on the Triton PLUS Automotive Edition; a hand-traced or loosely cut insert binds in the door wafer and turns a dead-battery inconvenience into a lockout. The blade is part of the job, not an afterthought.

Cost and what to expect

A Kia Sportage spare smart key, programmed and verified on-site in Windsor or anywhere across Essex County, starts at $229. Most jobs fall between $329 and $499+ once the specific fob revision, the security access, and the door blade work are accounted for. A full quote is given before the technician dispatches, and there are no surprise add-ons after the appointment.

For comparison, the typical dealer route on the same car involves a tow to the dealership (often $150 to $250+), a service bay slot that may be days out, and a labour book rate that lands in the $500 to $800+ range before the fob itself is invoiced. Canadian Locksmiths holds active NASTF VSP credentials, the same authority gate the dealer relies on for security access, and runs the work mobile.

Book a Kia Sportage spare smart key with Canadian Locksmiths or call (519) 979-1270 for a full quote against the VIN before dispatch.

Frequently asked questions

Q: Can a Kia Sportage smart key be programmed without going to a dealer? A: Yes. Canadian Locksmiths registers the new key to the SMK unit and Smartra immobilizer over OBD-II, with any required security access pulled through the NASTF VSP channel, the same authority the dealer uses, and finishes the job at the customer's location in one mobile visit with no tow.

Q: Why can't a budget programmer just add a key to a Sportage? A: The Smartra immobilizer requires proper access, and on the newer security generation a PIN or one-time code tied to the VIN, before the smart-key module will register a key. A tool with no credentialed access can pair the remote buttons but never satisfy the immobilizer, which is why a budget key often locks the doors but will not start the car.

Q: Will the original key still work afterward? A: Yes. The new key is registered alongside the original without removing it. Both keys leave the appointment fully paired for remote functions and engine start.

Q: Does a 2022 Sportage use the same key blade? A: Not always. The 2020 to 2021 smart-key cars use the HY20R reverse keyway, and certain 2022 builds move to the HYN11 keyway. The correct blank is matched to the VIN and year, which is why an online key bought for the wrong year often will not fit the lock.

Q: How long does the appointment take? A: A spare smart key with one working key already present is generally a 45 to 75 minute appointment, depending on whether the door blade is decoded on-site or cut to a known door code, and on the registration running clean on the first pass.

Q: Does Canadian Locksmiths ask for proof of ownership? A: Canadian Locksmiths may, at its sole discretion, request proof of vehicle ownership or identity before, during, or after performing services, and may decline service where ownership cannot be reasonably established. Questions are welcome any time on the FAQ page or by phone.

Q: Does Canadian Locksmiths service Kias outside Windsor? A: Yes. Mobile dispatch covers Windsor, Tecumseh, LaSalle, Lakeshore, Amherstburg, Essex, Kingsville, Leamington, and the rest of Essex County, Ontario.
