Jeep Grand Cherokee Spare Key Replacement in Windsor: What the Secure Gateway Changes

The story behind the second fobik

A late-model Jeep Grand Cherokee WK2 parked in the lot at the Walmart Supercentre on the south side of Windsor needed a spare smart proximity fobik. One working key in the household, no drama, nothing lost. The owner had read the routine note that every Chrysler, Dodge, Jeep, and Ram built from 2018 forward sits behind a Secure Gateway Module, and that the days of plugging any budget tool into the port and adding a key were over. Better to sort the spare while the original still worked than to find out the hard way after losing it.

One mobile visit to the parking spot, on-site programming, and the Grand Cherokee left with two fully working fobs: the original plus an OEM-equivalent five-button smart proximity fobik, the mechanical backup blade cut to the door code, paired through the Wireless Control Module, with the gateway unlocked and the immobilizer PIN pulled through the proper channel.

From the Google Business Profile update

The image below is the actual photo Canadian Locksmiths posted to its Google Business Profile after the appointment. The short customer note on the embedded card reads:

★★★★★

"Got me a Grand Cherokee key, no fuss. Just paid for the key, no tow charge."

Shared by Marcus T. on the Canadian Locksmiths Google Business Profile

Vehicle and module specifics

The Grand Cherokee covered in this post is the WK2 generation in its later production years, the run that ships with the Secure Gateway Module (SGW) Chrysler began fitting across the lineup for the 2018 model year. The immobilizer secret lives in the Wireless Control Module (WCM, also called the RF Hub), and every read or write to it now travels through the gateway, which refuses unauthenticated diagnostic traffic on the CAN bus.

The 68143505 family of part numbers carries across the Grand Cherokee, Durango, and several Ram applications in this window, with the AA and AB suffix tracking minor firmware and hardware revisions. Canadian Locksmiths confirms the exact fob revision against the VIN before cutting, because a fobik that is one revision off will sometimes pair for remote functions but throw a mismatch when the WCM checks the rolling immobilizer signature.

Tools used on this job

The Secure Gateway is the part that trips budget shops. From 2018 on, the SGW sits between the OBD-II port and the rest of the vehicle network and drops any diagnostic request that has not been authenticated. A generic clone tool plugged straight into the port can read generic engine data but cannot reach the WCM to add a key. The legitimate path is a tool with a current cloud subscription that authenticates the unlock through the manufacturer's server. On this spare-key visit, the gateway was unlocked and the fobik paired with the Autel IM608 Pro through its cloud subscription, and the immobilizer PIN was pulled through the NASTF VSP channel rather than guessed or bypassed. For deeper module work and all-keys-lost recovery, Canadian Locksmiths runs the dealer-equivalent stack: an Opus IVS CarDAQ-Plus 3 pass-through driving Stellantis wiTECH 2.0, the same software-and-hardware combination the dealer uses.

What gets done on the appointment

The high-level sequence the technician follows for a Grand Cherokee spare smart fobik:

1. Confirm vehicle details. Read the VIN at the dash and the door jamb, note the model year and trim, and confirm one working fob is present. Quote the spare rate against the verified fob part number and revision.
2. Cut the mechanical backup blade. If the door code is on file, the blade is cut to code on the Triton PLUS. If not, the technician decodes the driver door cylinder first, then cuts.

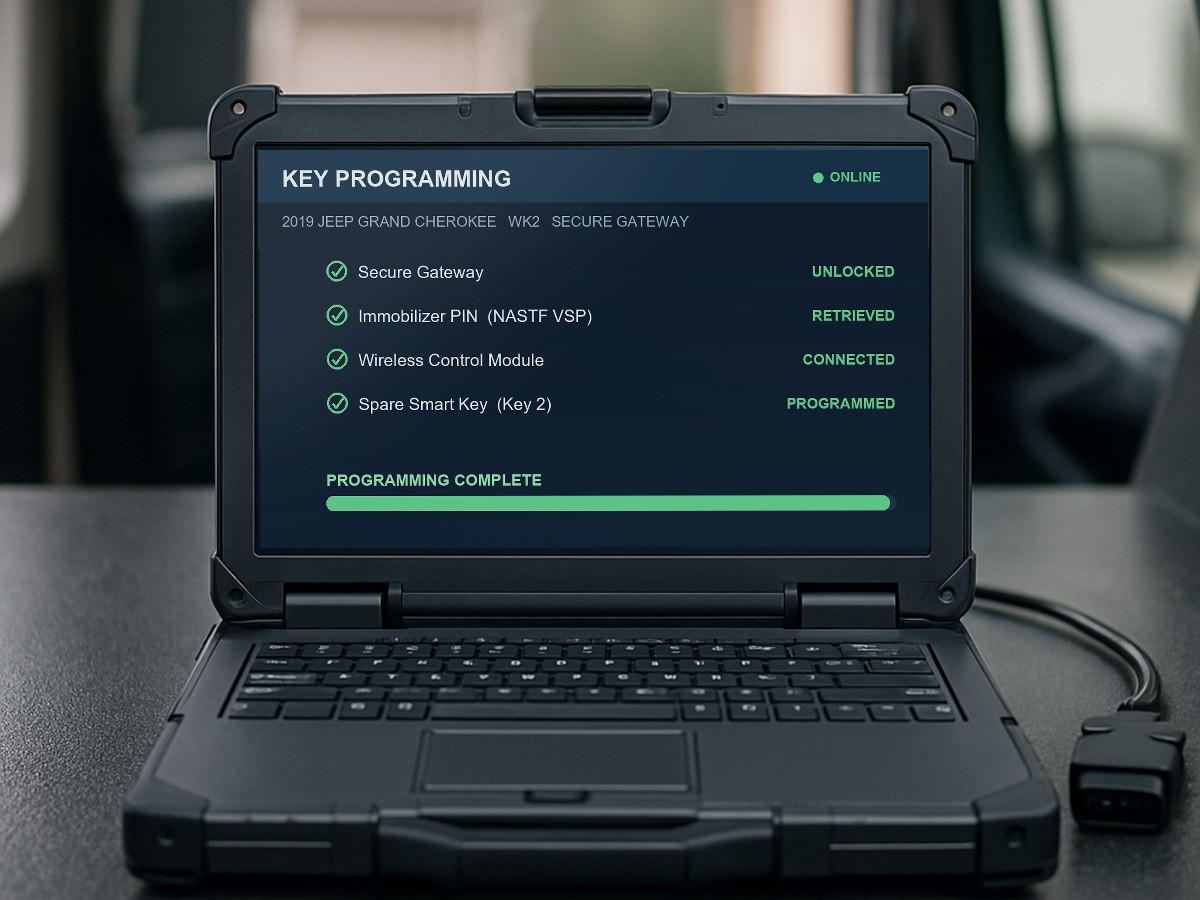

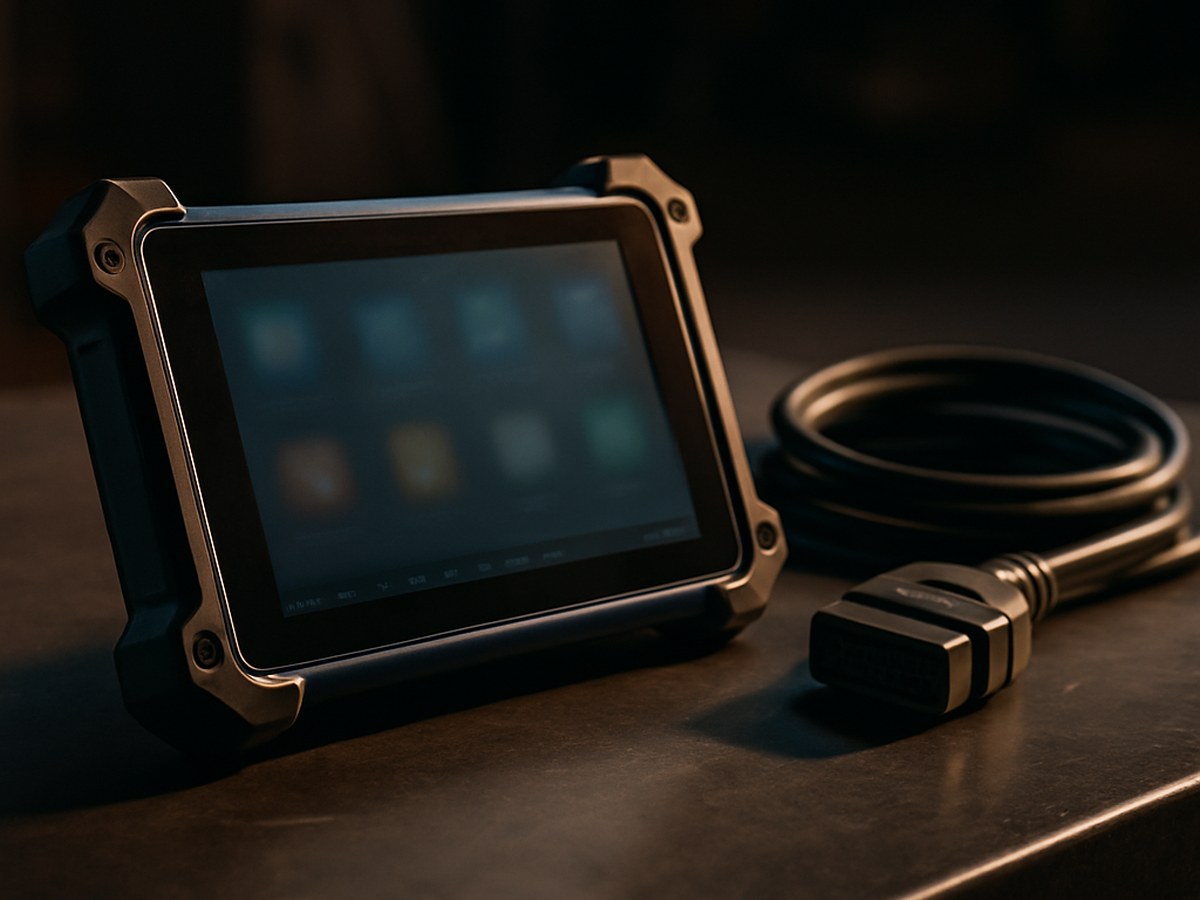

3. Unlock the Secure Gateway. With the Autel IM608 Pro connected and its cloud subscription active, the SGW is authenticated and unlocked so the tool can reach the Wireless Control Module.
4. Retrieve the PIN and pair the fob. The immobilizer PIN is pulled through the NASTF VSP channel against the VIN, the new fobik is written into a free key slot in the WCM, and the rolling immobilizer signature is synced.
5. Verify everything. The technician confirms push-button start, walks all four doors for passive entry, then range-tests remote lock, unlock, remote start, panic, and the power lift-gate.
6. Hand off. The original fob remains fully functional. The new fobik is given to the owner with the cut blade seated in its mechanical backup slot.

Troubleshooting common Grand Cherokee key issues

These are the calls Canadian Locksmiths handles every week from WK2 owners who tried a budget option first.

• The new fob unlocks the doors but the engine will not crank. The remote was learned but the immobilizer half of the fobik was never paired into the WCM, usually because the shop could not get past the Secure Gateway. The remote keyless function lives in a different learn step than the immobilizer transponder. Reaching the WCM through an authenticated gateway unlock completes the start side.
• A budget tool "added" the key, then the dash threw immobilizer and gateway faults. Forcing traffic at the SGW without authenticating leaves stored gateway and network communication codes. Those clear once the job is done properly through the unlock, but the half-finished attempt is why the warning lights appeared.
• Remote start works from the original fob but not the new one. Remote start on the WK2 is gated by a configuration flag in the WCM and the body modules. A fob that is a revision off, or one paired without the remote-start parameter enabled, will start and lock the truck but ignore the remote-start press. The fix is confirming the correct fob revision and the WCM configuration.
• Passive entry works on the driver door only. The proximity antenna in the offending door is either unplugged at the harness or was never enabled in configuration after a door or module swap. Reading the WCM and body configuration exposes the conflict in under a minute.

Insider notes most owners never hear

The Secure Gateway era of Chrysler, Dodge, Jeep, and Ram is one of the least-understood corners of the consumer locksmith world. The notes below are the technical reality from inside the work, not the marketing version. Senior FCA field technicians will recognize all of these; budget shops generally do not.

1. The Secure Gateway is a real network gate, not a software nag

From the 2018 model year, FCA placed a physical Secure Gateway Module between the OBD-II port and the internal vehicle networks. It is not a password prompt that can be clicked away. It is a hardware firewall that silently discards any diagnostic write it has not authenticated. This is why a tool that programmed a 2016 Grand Cherokee in five minutes simply times out on a 2019. The unlock has to be authenticated against the manufacturer's server through a current tool subscription, and there is no offline shortcut.

2. The WCM holds the secret, and it is rolling, not static

The immobilizer secret on the WK2 lives in the Wireless Control Module, and the handshake between fob and WCM rolls on each cycle rather than relying on a fixed code that can be copied. A fob cloned on a bench without touching the WCM will operate the remote buttons but will never satisfy the immobilizer, so the engine stays locked. Adding a working starting key means writing into the WCM through the gateway, every time.

3. PIN by the book: the NASTF VSP channel

To write a key into the WCM the tool needs the vehicle's immobilizer PIN. The legitimate way to obtain it is the NASTF Vehicle Security Professional (VSP) channel, a North American registry that vets locksmiths and gives credentialed professionals manufacturer-authorized access to security data against a specific VIN. Canadian Locksmiths holds active NASTF VSP credentials. A shop without that registration is left guessing the PIN or chasing grey-market workarounds, neither of which belongs on a customer's vehicle.

4. Spare key versus all-keys-lost is a different job entirely

With one working fob present, the WCM already trusts its immobilizer secret and the new fobik drops into a free key slot through a standard add. With zero working keys, the technician has to authenticate to the gateway, pull the PIN through NASTF VSP, and in many cases run a deeper module routine to seat a first key from a locked state. That all-keys-lost path on a Secure Gateway truck is where Canadian Locksmiths runs the dealer-equivalent stack: the Opus IVS CarDAQ-Plus 3 pass-through driving Stellantis wiTECH 2.0, paired with the NASTF VSP authorization for the cloud unlock. It is the same software and the same class of hardware the dealer uses, run from a mobile van laptop.

5. Why the no-name online fobik so often fails

The five-button proximity fobik listings online look identical, but the M3N-40821302 family spans several firmware and board revisions. A fobik that is a revision off the truck's WCM expectation will frequently pair for the remote buttons and then fail the immobilizer sync, leaving the owner with a fob that locks the doors but will not start the engine. Confirming the fob revision against the VIN before anything gets cut or paired is the single step that prevents that outcome, and it is the step a mail-order fob plus a YouTube video cannot perform.

6. The gateway timeout window is unforgiving

Once the Autel IM608 Pro authenticates the Secure Gateway unlock, there is a working window before the session has to re-authenticate. On a clean job that is plenty of time. Where it bites is a noisy or weak network, a low battery, or an interruption mid-write: if the session drops, the unlock has to be re-run before the WCM write can resume. The technician keeps the programming sequence tight and the electrical system stable precisely so the gateway session does not lapse partway through seating the key.

7. Voltage discipline on a module-heavy truck

The Grand Cherokee carries a dense set of body and comfort modules, and a key-programming session keeps the network awake far longer than a normal key-off. If the battery is marginal, the 12V rail can sag during the write and the WCM can abort partway through, leaving a half-seated key. Canadian Locksmiths clamps a battery support unit rated for at least 25 amps continuous, a CTEK PRO25S or a Schumacher INC-25A, to the jump points for the full visit, not just the start, so the rail never drops during the gateway or WCM write.

8. The mechanical blade still matters on a proximity car

Push-button start makes owners forget the fobik has a blade at all, until the fob battery dies and they need to physically unlock the door, then drop the fob into the start pocket. That backup only works if the mechanical blade was cut correctly. The blade is cut to the door code on the Triton PLUS Automotive Edition; a hand-traced or loosely cut blade binds in the door wafer and turns a dead-battery inconvenience into a lockout. The blade is part of the job, not an afterthought.

9. A used fobik carries its old binding

A fobik pulled from another Grand Cherokee still holds the binding to its previous WCM. Dropping it into a different truck without clearing that state throws a key-data mismatch and the immobilizer rejects it. Some salvage fobs arrive pre-cleared; most do not. Sorting whether a used fob can be re-seated, and clearing the old binding when it can, is what separates a used fobik that actually works from one the customer paid for and then blames on the locksmith.

10. Remote start is a configuration, not just a button

Factory remote start on the WK2 is enabled by a parameter set in the WCM and the surrounding body modules, not simply by having a fob with a remote-start button printed on it. A new fobik can be physically capable of remote start and still do nothing if the configuration parameter is not present or not enabled for that key. Canadian Locksmiths confirms the remote-start parameter during pairing so the new spare behaves exactly like the original, rather than handing back a fob with a dead button on it.

Cost and what to expect

A Jeep Grand Cherokee spare smart fobik, programmed and verified on-site in Windsor or anywhere across Essex County, starts at $199. Most jobs fall between $199 and $299+ once the specific fob part number and revision, the Secure Gateway unlock, the PIN retrieval, and the door blade work are accounted for. A full quote is given before the technician dispatches; there are no surprise add-ons after the appointment.

For comparison, the typical dealer route on the same truck involves a tow to the dealership (often $150 to $250+), a service bay slot that may be days out, and a labour book rate that lands in the $700 to $1,100+ range before the fobik itself is invoiced. Canadian Locksmiths holds active NASTF VSP credentials, the same authority gate the dealer relies on for manufacturer-portal access, and runs the work mobile.

Book a Jeep Grand Cherokee spare smart key with Canadian Locksmiths or call (519) 979-1270 for a full quote against the VIN before dispatch.

Frequently asked questions

Q: Can a Grand Cherokee spare key be programmed without going to a dealer? A: Yes. Canadian Locksmiths unlocks the Secure Gateway with a current tool subscription and pulls the immobilizer PIN through the NASTF VSP channel, the same authority the dealer uses. The job is finished at the customer's location with one mobile visit and no tow.

Q: Why can't a budget programmer add a key to a 2018 or newer Jeep? A: From the 2018 model year, FCA fitted a Secure Gateway Module that blocks any unauthenticated diagnostic write. A no-name tool with no cloud subscription cannot authenticate the unlock, so it can never reach the Wireless Control Module to seat a key. The gateway is hardware, not a setting that can be clicked past.

Q: Will the original fob still work afterward? A: Yes. The new fobik is written into a free key slot in the WCM without removing the original. Both fobs leave the appointment fully paired for remote functions and engine start.

Q: How long does the appointment take? A: A spare smart fobik with one working key already present is generally a 45 to 75 minute appointment, depending on whether the door blade is decoded on-site or cut to a known door code, and on the gateway session running clean on the first pass.

Q: What if all the keys are already lost? A: All-keys-lost recovery on a Secure Gateway Grand Cherokee is a longer job that requires authenticating the gateway, pulling a security PIN through NASTF VSP, and often a deeper module routine on the dealer-equivalent wiTECH stack. Canadian Locksmiths handles those, and the call is best made before the truck gets towed anywhere.

Q: Does Canadian Locksmiths service Jeeps outside Windsor? A: Yes. Mobile dispatch covers Windsor, Tecumseh, LaSalle, Lakeshore, Amherstburg, Essex, Kingsville, Leamington, and the rest of Essex County, Ontario.
