Adding a Spare Smart Key to a Cadillac XT5 in Windsor: The Global A Advantage Owners Don't Know They Have

The story behind this XT5 spare key call

The call came from a homeowner in the Walmart Supercentre corridor of South Windsor. Her 2021 Cadillac XT5 came off the lot with a single working smart key, the way a lot of pandemic-era trades did, and after two years of telling herself she would deal with it later, a near-miss at a shopping cart corral made the decision for her. The fob had slipped out of a coat pocket and spent twenty minutes lost in a parking lot. It turned up under a cart. The spare key appointment got booked that evening.

The technician met her at the house the next morning. The XT5 never left the garage. One working key in hand, one sealed aftermarket fob from the van stock, and the whole job, cutting the emergency blade, pairing the new fob, range-testing every button, wrapped up before her coffee went cold. That convenience is not luck. It comes down to a piece of engineering trivia most XT5 owners have never heard: which electrical architecture their Cadillac runs.

From the Google Business Profile update

The job ran as a standard mobile spare smart key appointment, and the customer's note on the review card says what matters:

★★★★★

"Spare XT5 key needed. Done in the driveway. Both keys work, no dealer trip."

Shared by Holly L. on the Canadian Locksmiths Google Business Profile

Vehicle and module specifics

Here is the part that matters and that almost nobody tells XT5 owners: the 2020-2024 XT5 facelift stayed on GM's Global A electrical architecture for its entire run. Global B, the locked-down vehicle-intelligence platform GM rolled out from 2020 onward, went to the CT4, the CT5, the Corvette C8, and the 2021-and-newer Escalade. The XT5 and its XT4 and XT6 siblings kept the older, proven Global A backbone through 2024. The redesigned next-generation XT5 is the one that moves to Global B. That single platform decision defines everything about how keys get made for this vehicle, who can make them, and what the job costs.

Tools used on this job

On a Global A vehicle like this XT5, the Autel IM608 Pro handles the complete add-key procedure through the OBD port: it talks to the BCM over GMLAN serial data, opens the security session, and enrolls the new fob alongside the original. No internet handshake with GM's servers is required for a spare-key add on this architecture, which is exactly why the appointment happens in a garage instead of a service bay.

The OEM row in that table is not decoration. Canadian Locksmiths holds active NASTF Vehicle Security Professional (VSP) credentials and runs GM Techline Connect on an Opus IVS CarDAQ-Plus 3 pass-through, the same software-and-hardware stack a GM dealership uses for SPS2 module programming. On a Global A spare-key job it stays in the van. It comes out when a job crosses into module-level territory: a replaced BCM that needs setup, or a Global B sibling like a CT5 or a 2021-plus Escalade, where GM gates key functions behind authenticated server sessions that aftermarket-only shops cannot open.

What gets done on the appointment

1. Confirm the vehicle: VIN read at the dash and door jamb, year and trim check, count of working fobs.
2. Decode the driver's door lock with the Lishi HU100 tool and cut the new emergency blade to the mechanical code, so the spare opens the door even with a dead battery.
3. Connect to the OBD-II port and open a programming session with the Body Control Module.
4. Enroll the new fob into the BCM's key memory with the original fob present, keeping both keys active.
5. Verify push-button start, passive entry at all four doors, remote start, power liftgate, and panic from realistic distances.
6. Hand over both fobs, confirm the customer can start the vehicle with each, and log the fob count.

Troubleshooting common Cadillac XT5 key issues

• Fob works at the doors but the liftgate button does nothing. Nine times out of ten this is a fob enrolled by a budget shop that confirmed lock and unlock, then left. The liftgate and remote start functions ride on the same enrollment but deserve their own verification pass. The fix is a proper re-enrollment and a full button matrix test, not a new fob.
• "No remote detected" on a fob that worked yesterday. Usually the CR2032 coin cell, which drops off a cliff rather than fading politely, and Windsor winters accelerate it. If a fresh battery does not cure it, the fob's low-frequency antenna may have failed, and that means replacement rather than repair.
• Intermittent passive entry on one door handle only. That is a door-handle antenna problem, not a key problem. A shop that sells a new fob for this symptom has misdiagnosed it. The handle antenna circuit needs testing before any key work is justified.
• Aftermarket remote-start install fighting the factory system. Some third-party remote starters splice into the start circuit in ways that confuse the factory passive-entry logic. Symptoms look like a bad key: random no-starts, push-button start needing two presses. The history question, "has anyone installed a remote starter on this vehicle?", saves an hour of false key diagnosis.

Insider notes most owners never hear

1. Global A versus Global B is the whole ballgame

GM's Global A architecture, which this XT5 runs, lets a properly equipped locksmith complete an add-key entirely offline through the OBD port. Global B vehicles authenticate their internal network traffic and gate key enrollment behind GM server sessions. Same badge on the hood, completely different security model under it. When owners ask why a friend's CT5 key cost more and took longer than their XT5 key, this is the answer.

2. The XT5 kept Global A on purpose, and owners benefit

GM staged the Global B rollout by program economics, not by badge prestige. Mid-cycle vehicles like the XT5 facelift were not re-engineered onto the new electrical backbone. The practical effect for owners through 2024: faster aftermarket support, broader tool coverage, and a spare key that can be added at home. The redesigned next-generation XT5 gives that up.

3. One fob family covers XT4, XT5, and XT6

The HYQ2EB 5-button proximity fob is shared across Cadillac's 2020-plus crossover line. That commonality is good news for stock: a mobile van that carries the fob for an XT5 also covers the neighbour's XT4. It also means a used fob listed online as "XT4" may physically match an XT5, which leads directly to the next note.

4. Used GM smart fobs are usually a dead end

GM proximity fobs marry to the first vehicle they are enrolled in, and the XT5 will not accept a fob that carries another vehicle's enrollment history. The twenty-dollar used fob on a classifieds site is, in most cases, scrap for this application. A sealed aftermarket or OEM-equivalent unit costs more upfront and is the only path that reliably programs.

5. The transmitter pocket is the dead-battery backdoor

The XT5 hides an inductive backup reader in the centre console: drop a fob with a dead battery into the transmitter pocket and the vehicle can still authenticate it and start. Owners who know this trick avoid a tow the night the coin cell dies. It is also the tell a technician uses to separate a dead fob battery from a real enrollment fault.

6. The HU100 blade matters more than people think

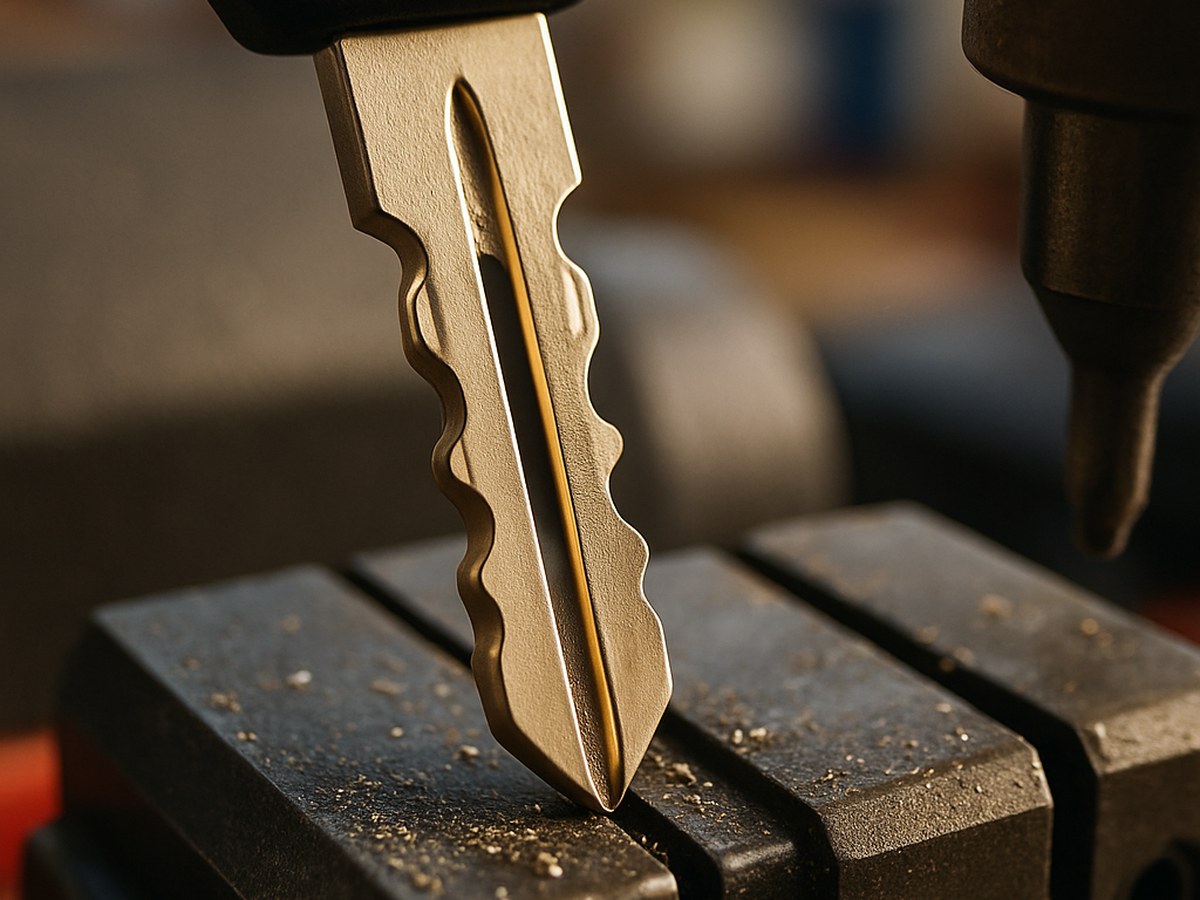

Every XT5 smart key hides an HU100 sidewinder emergency blade. A spare fob with an uncut blade is half a spare. The door lock gets decoded with the Lishi GM HU100 V3, the blade gets milled to the mechanical code, and the test is simple: the new blade must turn the driver's door lock as smoothly as the original. Skipping the blade cut is the most common corner cut on bargain spare-key jobs.

7. Two enrollment paths exist on Global A, and one of them is a trap

GM publishes an owner-level relearn for some Global A vehicles that wipes all existing keys as part of the process. It exists for emergencies, takes the better part of an hour of timed security waits, and on a push-button-start crossover it can leave an owner with zero working keys if it is attempted with incompatible hardware. The tool-assisted add-key path enrolls the new fob alongside the original with no wipe. Knowing which path a shop intends to use is a fair question to ask before saying yes.

8. All-keys-lost on an XT5 is a different job entirely

With one working key, enrollment is an add. With zero keys, the security session has to be earned: longer timed waits, deeper BCM access, and in some scenarios OEM-path work. It is the difference between a sub-hour spare-key appointment and a longer all-keys-lost recovery, and it is why the spare key is always the cheaper insurance.

9. The NASTF VSP credential is what keeps the OEM door open

Aftermarket tools cover the routine work on Global A. The moment a job needs GM's own software, Techline Connect and SPS2 module programming, access runs through NASTF Vehicle Security Professional registration: a vetted credential with insurance and background requirements that GM honours for security-related data. It is the difference between a shop that can finish any GM key scenario and one that quietly tows the hard ones to the dealer.

10. Windsor's dealer geography makes mobile service the math winner

Cadillac service in the Windsor area routes through the regional GM dealer network, with booking lead times and a drop-off-and-wait model. For a vehicle that can be programmed at the curb in under an hour, the dealer path adds days and a second driver for no security benefit on this architecture. The calculus flips only on Global B vehicles, where server-gated enrollment narrows the field. Mobile coverage runs across Windsor, Tecumseh, LaSalle, and the rest of Essex County.

Cost and what to expect

A programmed spare smart key for a 2020-2024 Cadillac XT5 in Windsor and Essex County starts at $299, with most jobs landing between $329 and $399+ depending on fob sourcing, blade cutting, and trim. That includes the fob, the cut HU100 emergency blade, programming, and verification of every button with both keys.

The dealer route for the same outcome typically runs $450 to $650+ once parts and programming labour are tallied, before the logistics: if the vehicle's only key is already lost, add $150 to $250+ for towing. Canadian Locksmiths runs the same class of programming software the dealer uses, on a mobile-van laptop, with NASTF VSP credentials behind it. The price gap is logistics, not capability.

Frequently asked questions

Q: Can a locksmith really program a Cadillac XT5 key without the dealer? A: Yes, for the 2020-2024 XT5. It runs GM's Global A architecture, so a properly equipped automotive locksmith completes the entire spare-key procedure on-site through the OBD port. The dealer becomes relevant for module replacement scenarios and for Global B Cadillacs like the CT5 and 2021-plus Escalade.

Q: How long does a spare XT5 key take? A: With one working key present, most appointments finish in 45 to 60 minutes including blade cutting and a full button verification at the vehicle.

Q: Will the original key still work afterward? A: Yes. The add-key procedure enrolls the new fob alongside the original. Both keys stay active, and both get tested before the appointment ends.

Q: Can a used XT5 fob from a classifieds site be programmed? A: Almost never. GM proximity fobs lock to the first vehicle that enrolls them, and the XT5 rejects fobs carrying another vehicle's enrollment. Sealed aftermarket or OEM-equivalent fobs are the reliable path.

Q: What if every key to the XT5 is lost? A: All-keys-lost recovery on a Global A Cadillac is done on-site as well, with longer security waits and deeper module access. It costs more than a spare-key add, which is the practical argument for getting the spare made before it is needed.

Q: Does the 2025 XT5 redesign change any of this? A: Yes. The next-generation XT5 moves to GM's Global B architecture, where key enrollment is gated through authenticated GM server sessions. Owners of 2020-2024 models keep the simpler path described here for the life of the vehicle.

Q: Is the emergency blade really necessary on a smart key? A: It is the only way into a locked XT5 when the fob battery or the vehicle battery dies. A spare fob without a cut HU100 blade leaves the owner standing at a locked door in exactly the scenario the spare was bought for.
